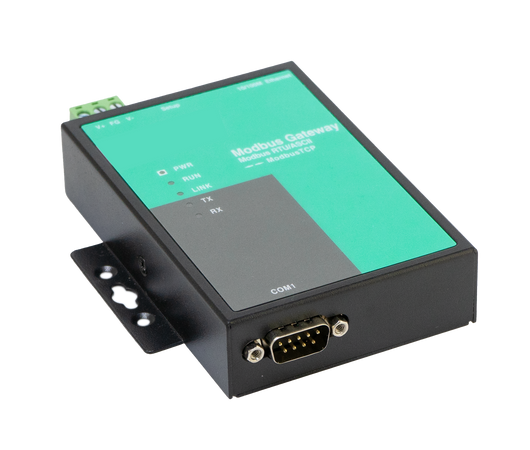

GW1101-1DI(3IN1)-DB-P(12-48В постоянного тока)

Описание

Настенное крепление
1 порт RS-232/485/422 + 1 порт Ethernet 100M, шлюз Modbus

  • Поддержка 1 последовательного порта 3IN1 DB9 и 1 самоадаптивного интерфейса Ethernet 10/100Base-T(X).
  • Поддержка преобразования между протоколами Modbus RTU/ASCII и Modbus TCP.
  • Поддержка ведущего устройства RTU, ведомого устройства RTU, ведущего устройства ASCII, ведомого устройства ASCII и других режимов работы.
  • Поддержка сопоставления виртуальных и реальных идентификаторов для обеспечения гибкого доступа между главными и подчиненными устройствами.
  • Поддержка входа питания 12 ~ 48 В постоянного тока
  • Поддержка широкого диапазона рабочих температур -40 ~ 75 ℃.

Технические характеристики

Ethernet

Standard: 10Base-T, 100Base-TX

Protocol: Modbus TCP, TCP, IP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS

Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning

Interface quantity: 1

Interface form: RJ45

Duplex mode: Full/Half Duplex Mode Self-adaption

Serial Port

Standard: EIA RS-232C, RS-485, RS-422

Protocol: Modbus RTU/ASCII

Quantity of serial port: 1 3IN1 serial port

RS-232 signal: DSR, RTS, GND, TXD, RXD,CTS, DTR

RS-485 signal: D+, D-, GND

RS-422 signal: T+, T-, GND, R+, R-

Baud rate: 110-115200bps

Data bit: 7bit, 8bit

Parity bit: None, Even, Odd, Space, Mark

Stop bit: 1bit, 2bit

Interface form: DB9

Flow control: RTS/CTS, DTR/DSR, XON/XOFF

Directional control: RS-485 direction adopts Automatic Data Direction Control technology

Pull high/low resistor for RS-485: 4.7kΩ

Electromagnetic isolation strength: 3KVDC/2KVrms

Operating mode: RTU Master, RTU Slave, ASCII Master and ASCII Slave

Connection quantity: support up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave) devices.

Configuration Method

WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration

Security

User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control

Indicator

Power supply indicator, running indicator, Ethernet port indicator, serial port indicator

Power Supply

12~48VDC, 3-pin 5.08mm pitch terminal blocks;

Power supply nonpolarity

Power Consumption

No-load: 0.9W@12VDC

Full-load: 1.1W@12VDC

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: wall mounting

Dimension (W x H x D): 97mm×110mm×25mm

Weight: 297g

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4

l Air discharge: ±15kV

l Contact discharge: ±8kV



IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

l Power supply: ±2kV

l Signal: ±1kV



IEC 61000-4-5 (Surge), Level 3

l Power supply: common mode±2kV, differential mode±1kV

l Signal: common mode ±1kV, differential mode ±1kV



Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS

Warranty

3 years

Модели

Model

WAN Port

LAN Port

WIFI Antenna Interface

Power Supply

IAP2300-2N2-5T-2LVI

1

4

2

12~36VDC
