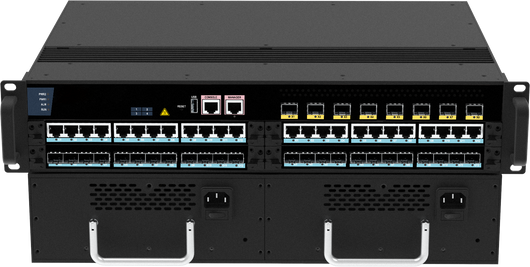

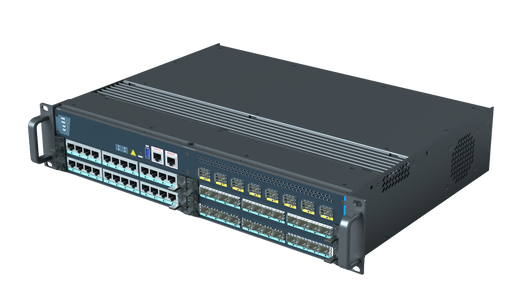

Серия ICS5556-N
Монтаж в 19-дюймовую стойку высотой 2U
56-портовый гигабитный/10-гигабитный модульный промышленный коммутатор Ethernet 3-го уровня
- Поддержка 8х слотов 10Gigabit SFP+ и 4х слотов плат, которые могут соответствовать платам с 12х слотами Gigabit SFP или платам с 12х медными портами Gigabit (опционально)
- Запатентованная технология AdoptRing, поддержка одиночного кольца, кольца связи, цепи, двойного подключения
- Поддержка ERPS и обнаружения петель трафика, что позволяет эффективно устранять петли и предотвращать широковещательные штормы, вызываемые петлями данных.
- Пропускная способность 10 Gigabit позволяет передавать большие объемы видео, голосовых данных и информации высокого качества и с высокой скоростью
- Поддержка одновременного ввода питания с двухканальным источником переменного тока, диапазон входного напряжения: 100 ~ 240 В переменного тока
- Поддержка широкого диапазона рабочих температур -40 ~ 60 ℃.
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3ae for 10GBase-X SFP+ IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP ITU-T G.8032 for ERPS |
Management | SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server/Relay, File Management, Log Management, Port Statistics, ARP |
Security | User permission rating, ACL, NAT, port alarm, power alarm, storm suppression, Telnet/SSH configuration, DHCP Snooping, link flapping protection, aggregation protection, loop detection |
Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
Unicast / Multicast | Static Multicast, Multicast Routing, IGMP-Snooping, PIM-SM, PIM-DM |
Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS |
Troubleshooting | Ping, Traceroute, Port Loopback, SFP Digital Diagnosis |
Routing Technique | VRRP、RIP、OSPF、BGP |
Time Management | NTP Client |
Interface | 10Gigabit SFP+: 1000/10G Base-X self-adaptive SFP+ slot Gigabit SFP slot : 100/1000 Base-X self-adaption SFP slot Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption USB interface: Type-A USB 2.0 Female, support system debugging and configuration file management CONSOLE port: CLI command line management port(RS-232), RJ45 MANAGER port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption for device network management |
Indicator | Power indicator, alarm indicator, running indicator, interface indicator |
Switch Property | Transmission mode: store and forward MAC address: 96K Buffer: 32Mbit Backplane bandwidth: 256G |
Power Supply | Simultaneous input of 100~240VAC dual power , single-phase socket with rocker switch |
Power Consumption | Full-load: ≤ 60W@220VAC (all board cards and the complete machine are copper ports, under high temperature environment) ≤ 90W@220VAC (all board cards and the complete machine are fiber ports, under high temperature environment) |
Working Environment | Operating temperature: -40~60℃ Storage temperature: -40~60℃ Relative humidity: 5%~95%(no condensation) |
Physical Characteristic | Housing: IP40 protection, metal Installation: 19-inch 2U rack mounting Dimension (W x H x D): 482.6mm×88.3mm×374.3mm (lugs are included) Weight: ≤ 9.5kg (complete machine) |
Industrial Standard | IEC61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge: ± 8kV l Contact discharge: ±6kV
IEC61000-4-4 (EFT, electrical fast transient), Level 3 l Power supply: ±2kV l Signal: ±1kV
IEC61000-4-5 (Surge), Level 3 l Power supply: differential mode±1kV, common mode±2kV l Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Authentication | CE, FCC, RoHS |
Warranty | 5 years |
Available Models | Type | Gigabit | 10 Gigabit | Power Supply | |
RJ45 | SFP | SFP+ | |||
ICS5556-24GT24GS8XS-2P220 | complete machine | 24 | 24 | 8 | 100~240VAC Dual power input |
ICS5556-MAIN-2P220 | Frame | — | — | 8 | |
ICS5556-IM-12GT | Board card | 12 | — | — | — |
ICS5556-IM-12GS | Board card | — | 12 | — |
