NP5000-N
Монтаж на стол/на стену
Безопасный сервер с 1/2/4/8 портами последовательных интерфейсов RS-232/485/422 3в1
- Поддержка 1/2х последовательных портов 3в1 DB9 для 1х самонастраиваемого интерфейса Ethernet 10/100Base-T(X) или 4/8х последовательных портов 3в1 RJ45 для 2х. самонастраиваемых интерфейсов Ethernet 10/100Base-T(X)
- (Опционально) Поддержка сетевых режимов, таких как режим резервирования, режим коммутации и режим двух IP-адресов, для удовлетворения потребностей различных сетевых сред.
- Поддержка RealCom, Reverse RealCom, TCP-сервер, TCP-клиент, UDP-сервер, UDP-клиент, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server и других режимов работы.
- Поддержка двойного источника питания с широким диапазоном входного напряжения 12 ~ 48 В постоянного тока.
- Поддержка широкого диапазона температур -40 ~ 75 ℃.
| Ethernet | Standard: 10Base-T, 100Base-TX Protocol: TCP, UDP, ARP, HTTP, HTTPS, TELNET, ICMP, SMTP, SNTP, DHCP, DNS Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning Interface form: RJ45 Interface quantity: 1/2 Duplex mode: Full/Half Duplex Mode Self-adaptive Work mode: each serial port can simultaneously establish up to 4 TCP/UDP session connections, support work modes such as RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server | |||||||||
| Serial Port | Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 1/2/4/8 3IN1 serial ports RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD or RXD, TXD, DTR, GND, DSR, RTS, CTS RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 110bps-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface form: DB9 or RJ45 Flow control: RTS/CTS, DTR/DSR, XON/XOFF Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485/422 end supports 32-node polling (customizable 256 nodes) Transmission distance: RS-232, 15m; RS-485/422, 1200m Pull high/low resistor for RS-485: 4.7kΩ Electromagnetic isolation strength: 2kVDC | |||||||||
| Console port (Optional) | CLI command line management port (RS-232), RJ45 | |||||||||
| Configuration Method | WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration | |||||||||
| Security | User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control | |||||||||
| Indicator | Power supply indicator, Ethernet port indicator, serial port indicator, running indicator | |||||||||
| Power supply | The power supply interface is 3-pin 5.08mm pitch terminal blocks; input power supply: 12~48VDC; support non-polarity | |||||||||
| Power consumption |
| |||||||||
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) | |||||||||
| Physical Characteristic | Housing: IP40 protection, metal Installation: Desktop and Wall Mounting
NP5000-1T-1DI(3IN1)-DB-P(12-48VDC), NP5000-1T-2DI(3IN1)-DB-P(12-48VDC): l Dimension (W x H x D): 97mm×25mm×110mm (lugs are included) l Weight: 297g
NP5000-2T-4DI(3IN1)-RJ-P(12-48VDC), NP5000-2T-8DI(3IN1)-RJ-P(12-48VDC): l Dimension (W x H x D): 170mm×32.6mm×110mm (lugs are not included) l Weight: 590g | |||||||||
| Industrial Standard | IEC 6100042 (ESD, electrostatic discharge), Level 3 l Air discharge: ±8kV l Contact discharge: ±6kV
IEC 6100044 (EFT, electrical fast transient pulses), Level 3 l Signal: ±1kV
IEC 6100045 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Signal: common mode±2kV, differential mode±1kV
Shock: IEC 60068- 2- 27 Free fall: IEC 60068- 2- 32 Vibration: IEC 60068- 2- 6 | |||||||||
| Certification | CE, FCC, RoHS | |||||||||
| Warranty | 3 years |
| Available Models | 100M copper port | 3IN1 (RS-232/485/422) DB9 | 3IN1 (RS-232/485/422) RJ45 | Power supply |
| NP5000-1T-1DI(3IN1)-DB-P(12-48VDC) | 1 | 1 | - | 12~48VDC |

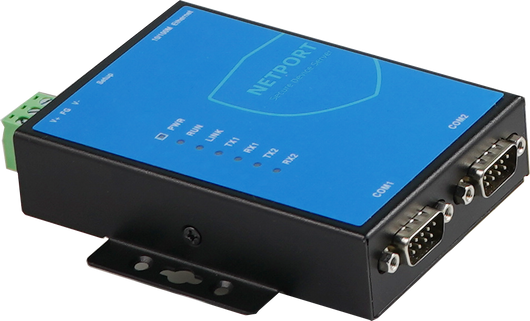

| NP5000-1T-2DI(3IN1)-DB-P(12-48VDC) | 1 | 2 | - | |

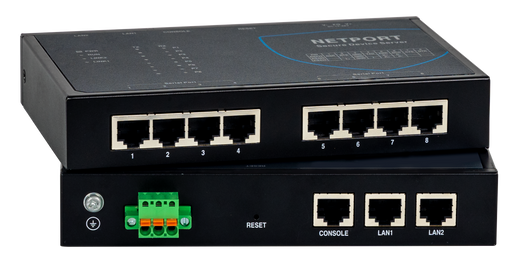

| NP5000-2T-4DI(3IN1)-RJ-P(12-48VDC) | 2 | - | 4 | |
| NP5000-2T-8DI(3IN1)-RJ-P(12-48VDC) | 2 | - | 8 |
