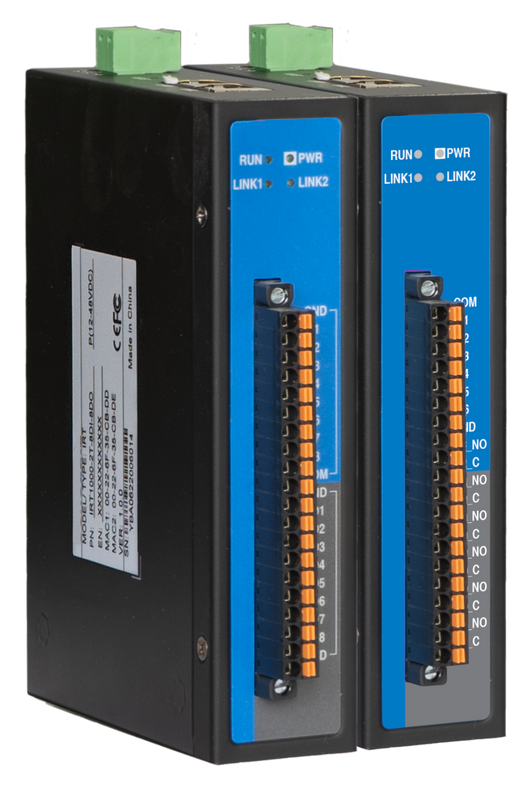

Серия RIO1000-N

Ethernet Port

Standard: 10Base-T, 100Base-TX

Protocol: Modbus TCP, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS and DHCP

Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning

Interface quantity: 2

Interface form: RJ45

Duplex mode: Full/Half Duplex Mode Self-adaption

Network mode: single IP mode (redundant mode/switching mode) and dual IP mode

Working mode: Modbus TCP Slave (Server), support function codes 01, 02, 03, 04, 05, 06, 15 and 16, and support up to 10 master connections

Isolation protection: 1.5kVDC

DI

Digital Input

Interface quantity: 6/8

Interface form:

l RIO1000-2T-8IO(DI)-8IO(DO)-TB-P(12~48VDC)

20-PIN 3.81mm pitch terminal blocks (DI channel occupies 10 pins)

l RIO1000-2T-6IO(DI)-6IO(RO)-TB-P(12~48VDC)

20-PIN 3.81mm pitch terminal blocks (DI channel occupies 8 pins)

Digital filtering: software configuration (1-65535ms)

Counter frequency: ≤1kHz

Working mode: DI or counter

Input type: dry contact (ON: GND short circuit; OFF: open circuit);

Wet contact Source (NPN) (ON: 0~3VDC; OFF: 10~30VDC);

Wet contact Sink (PNP) (ON: 10~30VDC; OFF: 0~3VDC)

DO

Digital Output

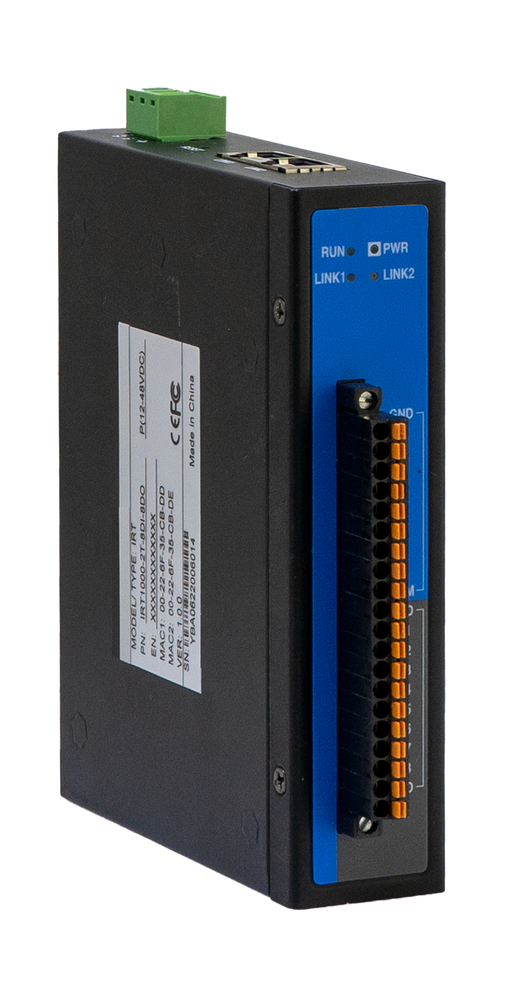

RIO1000-2T-8IO(DI)-8IO(DO)-TB-P(12~48VDC)

l Interface quantity: 8

l Interface form: 20-PIN 3.81mm pitch terminal blocks (DO

          channel occupies 10 pins)

l Pulse frequency: ≤ 500Hz

l Working mode: DO or pulse output

l Rated current: 200mA/Channel

l Output type: Sink (PNP)

l Overcurrent protection: 650mA/Channel

Overvoltage protection: 45VDC

RO

Relay Output

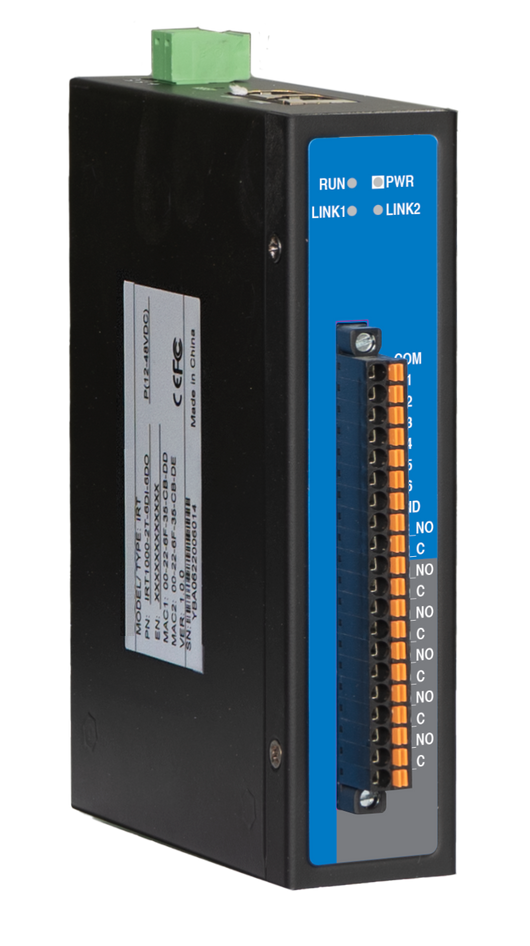

RIO1000-2T-6IO(DI)-6IO(RO)-TB-P(12~48VDC)

l Interface quantity: 6

l Interface form: 20-PIN 3.81mm pitch terminal blocks (RO        channel occupies 12 pins)

l Rated load: resistive load, 5A 250VAC, 5A 30VDC

Inductive load, 2A 250VAC, 2A 30VDC

l Withstanding Voltage: coil and contact, 3,000VAC 50/60Hz 1

min; Homopolar contact, 750VAC

50/60Hz 1 min

l Relay ON/OFF time: <10ms

l Insulation resistor:1000mΩ (Minimum) @500VDC

l Mechanical life: above 20,000,000 times

l Electrical Life: above 50,000 times (250VAC 5A, resistive

load )

l above 50,000 times (30VDC 5A, resistive load )

l above 100,000 times (250VAC 2A, inductive load )

l above 100,000 times (30VDC 3A, inductive load )

l Contact resistance: <100mΩ

Management

WEB configuration (HTTP/HTTPS), TELNET configuration, SSHD configuration, point-to-point configuration

Security

Communication watchdog, SNMP management, mail alarm, SNMP Trap alarm, I/O Trap alarm, system alarm, user privilege classification, IP address filtering, MAC address filtering, remote access control

Indicator

Running indicator, power indicator, Ethernet indicator, I/O indicator

Power Supply

12~48VDC, 3-PIN 5.08mm pitch terminal block, support non-polarity

Power Consumption

l RIO1000-2T-8IO(DI)-8IO(DO)-TB-P(12~48VDC)

No-load: 1.5W@12VDC (high temperature)

Full-load: 2.8W@12VDC (high temperature)

l RIO1000-2T-6IO(DI)-6IO(RO)-TB-P(12~48VDC)

No-load: 1.4W@12VDC (high temperature)

Full-load: 2.4W@12VDC (high temperature)

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%～95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail or wall mounting

Dimension (W x H x D): 33mm×138mm×110mm

Weight: 0.5kg

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3B

l Air discharge:± 8kV

l Contact discharge: ±6kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3B

l Power supply: ±2kV

l Signal: ±1kV

IEC 61000-4-5 (Surge), Level 3B

l Power supply: common mode±2kV, differential mode±1kV

l Signal: common mode ±2kV, differential mode ±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS

Warranty

3 years
