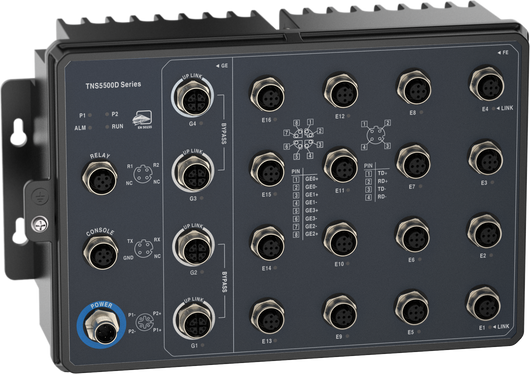

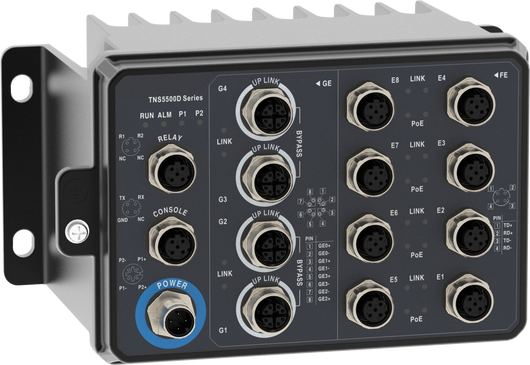

Серия TNS5500D-N

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1AB for LLDP

IEEE 802.3af for PoE

IEEE 802.3at for PoE+

ITU-T G.8032 for ERPS

Management

SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management (for PoE version)

Security

User permission rating, ACL, port alarm, storm suppression, SSHD configuration, Telnet configuration

Switch Function

802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicast

Static Multicast, IGMP-Snooping

Redundancy Technology

Ring, STP/RSTP/MSTP, ERPS, Loop Detection

Troubleshooting

Ping, Traceroute, Port Loopback

Time Management

NTP Client

Interface

Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning；it supports two groups of Bypass

Gigabit PoE M12:10/100/1000base-T (X), M12 (Female), 8-Pin X-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X  automatic detection; support two groups of Bypass function. The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while Pin 2 and 4 are negative

100M M12: 10/100Base-T(X), M12(Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

100M PoE M12:100/1000base-T (X), M12 (Female), 4-Pin X-Coded, automatic flow control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative

Alarm port: M12 (Female), 4-Pin D-Coded, support 1 relay alarm output, current load capability is 1A@30VDC or 0.3A@125VAC

Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded

Indicator

Power indicator, alarm indicator, running indicator, interface indicator, PoE indicator

Switch Property

Transmission mode: store and forward

MAC address: 16K

Packet buffer size: 12Mbit

Backplane bandwidth: 56G

Switch time delay: <10μs

Power Supply

Power supply range:

l TNS5500D-8P4GT-P24：24VDC(18~36VDC)

l TNS5500D-8P4GT-P110：110VDC(66~156VDC)

l TNS5500D-8T4GT-P24：24VDC(9~36VDC)

l TNS5500D-8T4GT-P110：110VDC(66~156VDC)

l TNS5500D-8GP4GT-P110：110VDC(66~156VDC)

l TNS5500D-12GT-P110：110VDC(66~156VDC)

Connection method: M12(Male), 4-Pin A-Coded

Connection protection: non-polarity

Power Consumption

TNS5500D-8P4GT-P110

l Full load (without PoE load): 15.8W@110VDC

l Full load (with PoE load): 124.6W@110VDC

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%～95%(no condensation)

Physical Characteristic

Housing: IP67 protection, metal

Installation: wall mounting

Dimension (W x H x D): 178mm×104mm×92mm

Weight: 1.57kg

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4

l Air discharge:± 15kV

l Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

l Power supply: ±4kV

l Ethernet interface: ±2kV

l Relay: ±4kV

IEC 61000-4-5 (Surge), Level 3

l Power supply: common mode±4kV, differential mode±2kV

l Relay: common mode ±4kV, differential mode±2kV

l Ethernet interface: common mode±4kV

Shock: IEC 61373

Free fall: IEC 60068-2-32

Vibration: IEC 61373

Authentication

CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373, EN45545

Warranty

5 years
