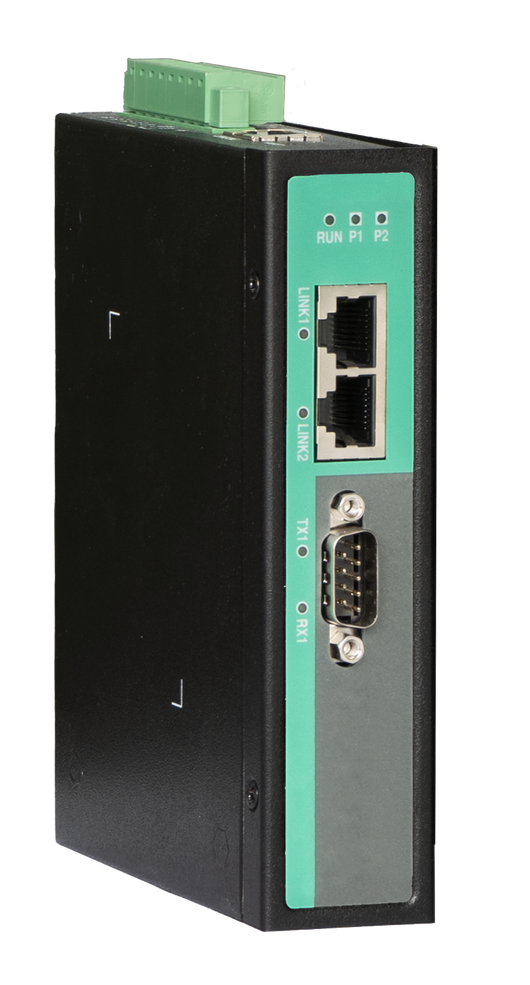

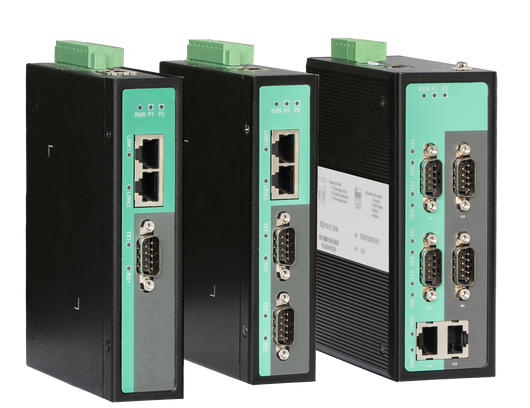

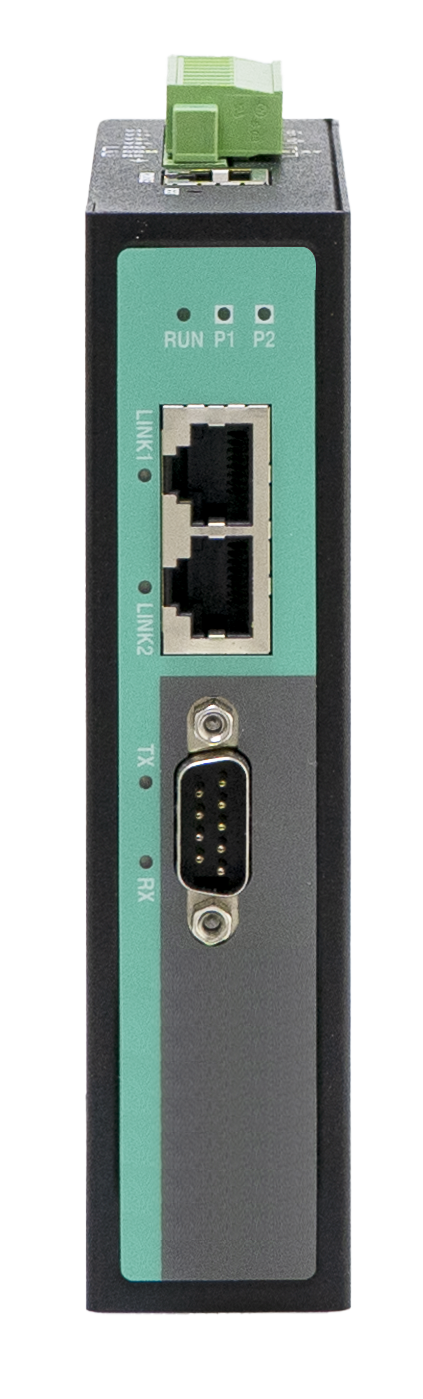

IGW1111/IGW1112/IGW1114-N series

Description

DIN-Rail Mounting
1/2/4 RS-232/485/422 + 2 100M Ethernet Ports Modbus Gateway

  • Support 1/2/4 3IN1 serial ports and 2 10/100Base-T(X) self-adaptive Ethernet interfaces
  • Support conversion between Modbus RTU/ASCII and Modbus TCP protocol
  • Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes
  • Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
  • Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments
  • Support 12~48VDC dual power supply inputs
  • Support -40~75℃ wide operating temperature range
Specifications

Ethernet

Standard: 10Base-T, 100Base-TX

Protocol: Modbus TCP, TCP, IP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS

Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning

Interface quantity: 2

Interface form: RJ45

Duplex mode: Full/Half Duplex Mode Self-adaption

Serial Port

Standard: EIA RS-232C, RS-485, RS-422

Protocol: Modbus RTU/ASCII

Quantity of serial port: 1/2/4 3IN1 serial ports

RS-232 signal: DCD, DSR, RTS, GND, TXD, RXD, CTS, DTR

RS-485 signal: D+, D-, GND

RS-422 signal: T+, T-, GND, R+, R-

Baud rate: 110bps-15200bps (customizable110bps-921600bps)

Data bit: 7bit, 8bit

Parity bit: None, Even, Odd, Space, Mark

Stop bit: 1bit, 2bit

Interface form: DB9(Male)

Directional control: RS-485 direction adopts Automatic Data Direction Control technology

Pull high/low resistor for RS-485: 4.7kΩ

Electromagnetic isolation strength: 3KVDC/2KVrms

Operating mode: RTU Master, RTU Slave, ASCII Master and ASCII Slave

Connection quantity: support up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave)  devices.

Configuration Method

WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration

Security

User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control

Indicator

Power supply indicator, running indicator, Ethernet port indicator, serial port indicator

Power Supply

12~48VDC, 6-pin or 8-pin 5.08mm pitch terminal blocks, power supply occupies 4 pins in the left

Power supply nonpolarity, dual power supply redundancy

Power Consumption

Available Models

No-load

(high temperature)

Full-load

(high temperature)

IGW1111-1DI(3IN1)-DB

1.3W@12V

1.6W@12V

IGW1112-2DI(3IN1)-DB

1.7W@12V

2.0W@12V

IGW1114-4DI(3IN1)-DB

1.9W@12V

2.4W@12V



Working Environment

Operating temperature: -40~75

Storage temperature: -40~85

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting



IGW1111/IGW1112 Series

Dimension (W x H x D): 33mm×138mm×110mm

Weight:≤ 500g



IGW1114 Series

Dimension (W x H x D): 53mm×138mm×110mm

Weight: ≤ 640g

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

Air discharge: ±8kV

Contact discharge: ±6kV



IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

Power supply: ±2kV

Signal: ±1kV



IEC 61000-4-5 (Surge), Level 3

Power supply: common mode±2kV, differential mode±1kV

Signal: common mode ±1kV, differential mode ±1kV



Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS

Warranty

3 years

Models

Available Models

100M Copper Port

3IN1RS-232/485/422

Power Supply

IGW1111-1DI(3IN1)-DB

2

1

12~48VDC

dual power supply

IGW1112-2DI(3IN1)-DB

2

2

IGW1114-4DI(3IN1)-DB

2

4
